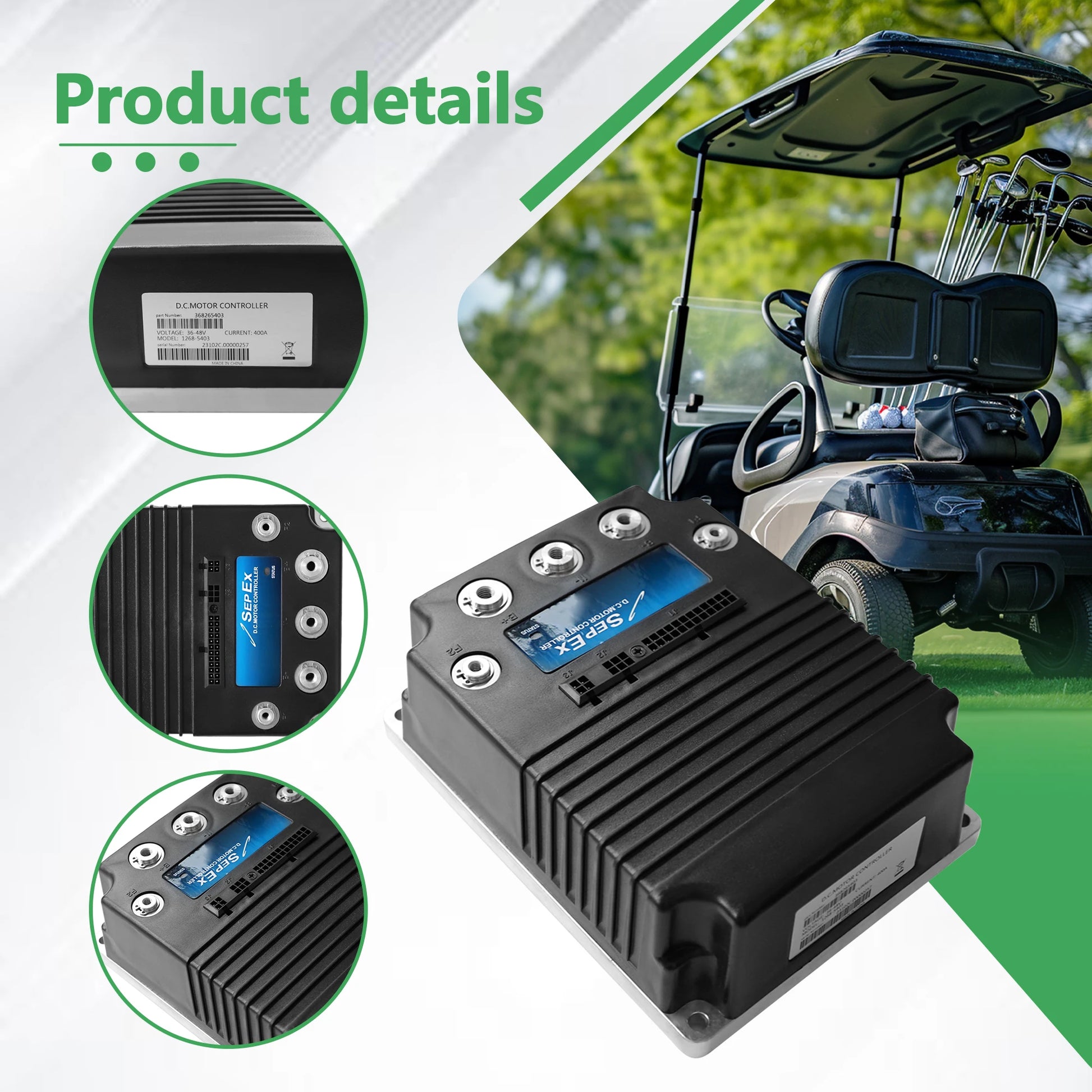

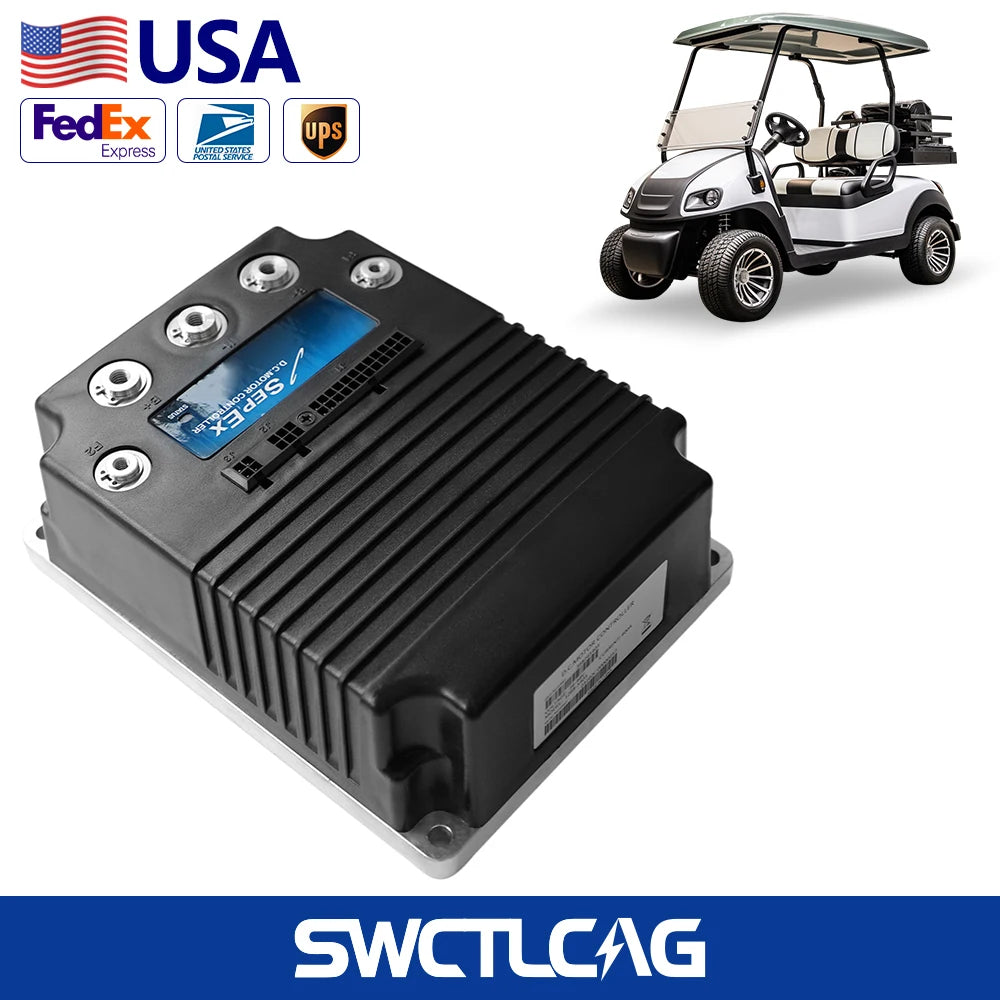

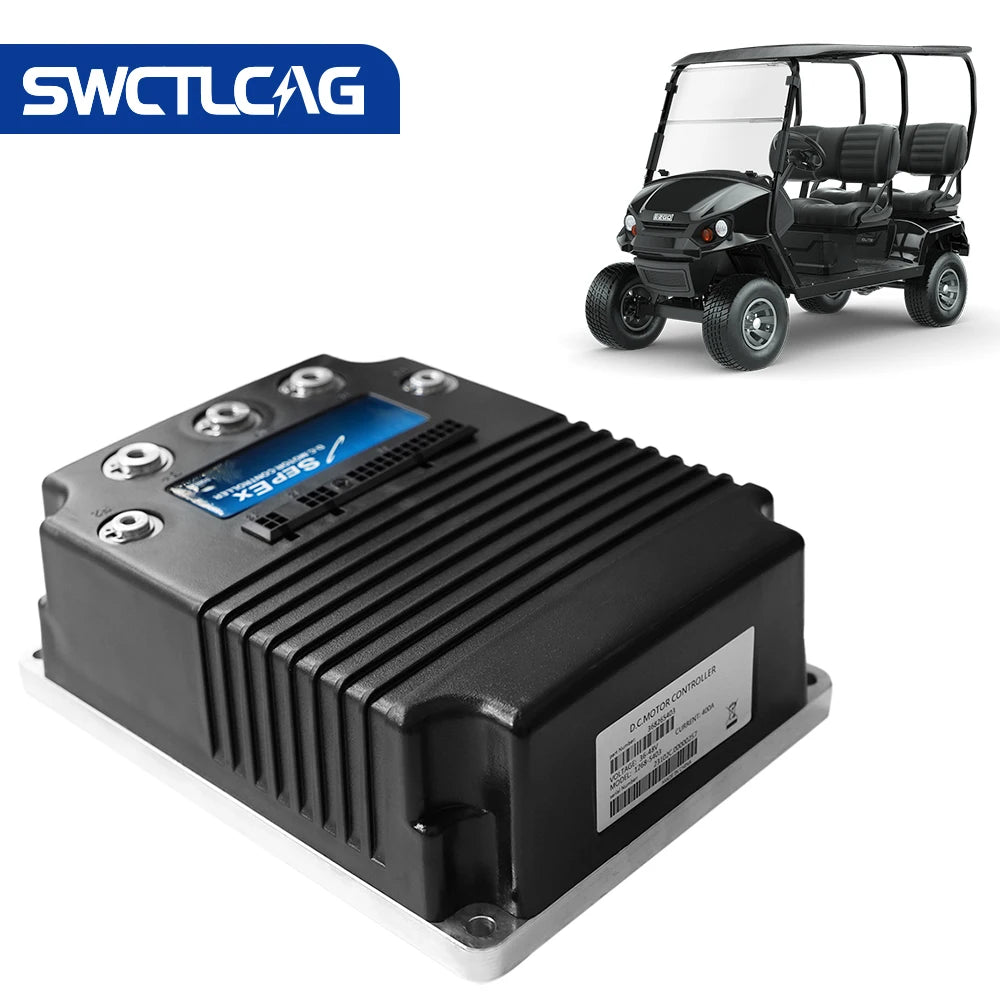

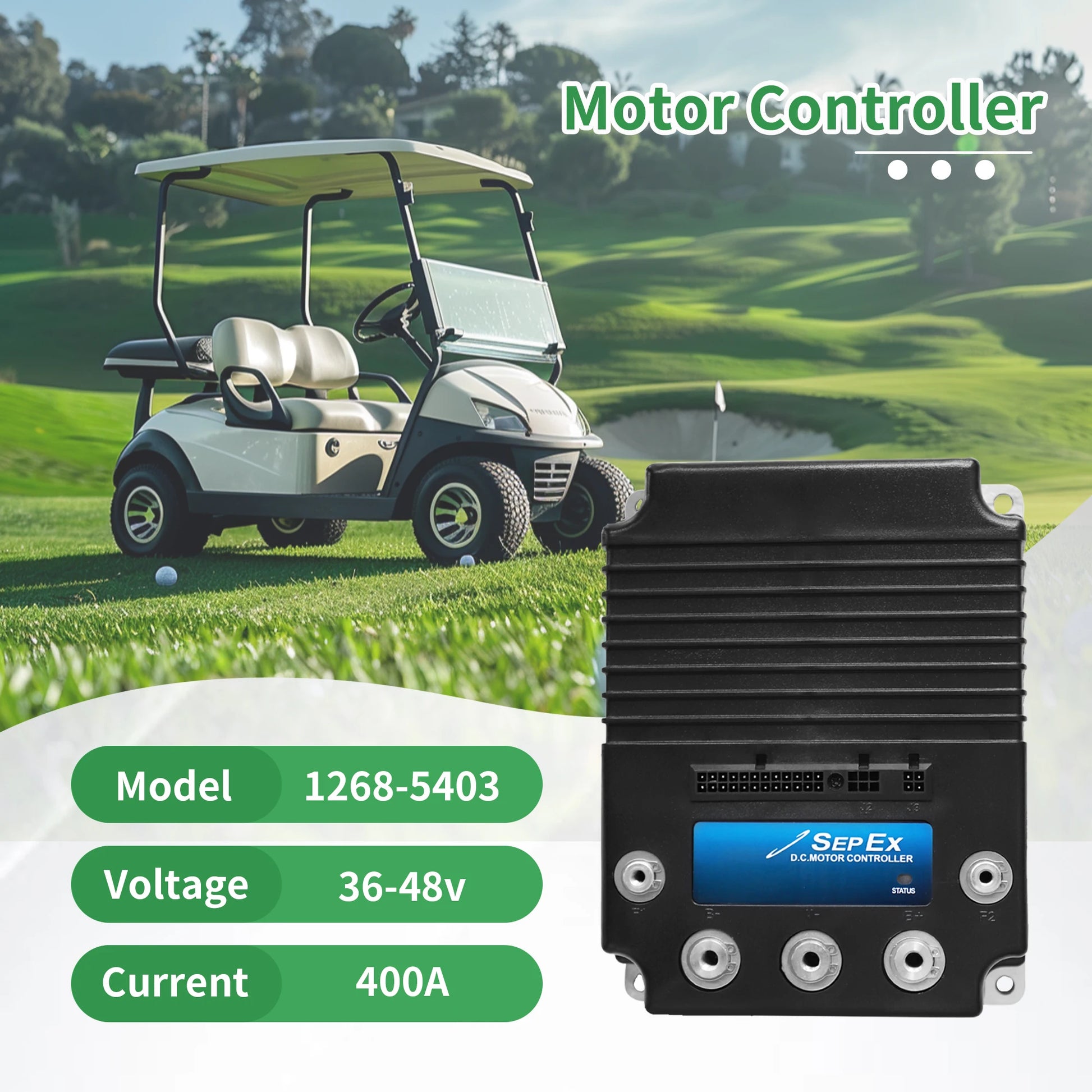

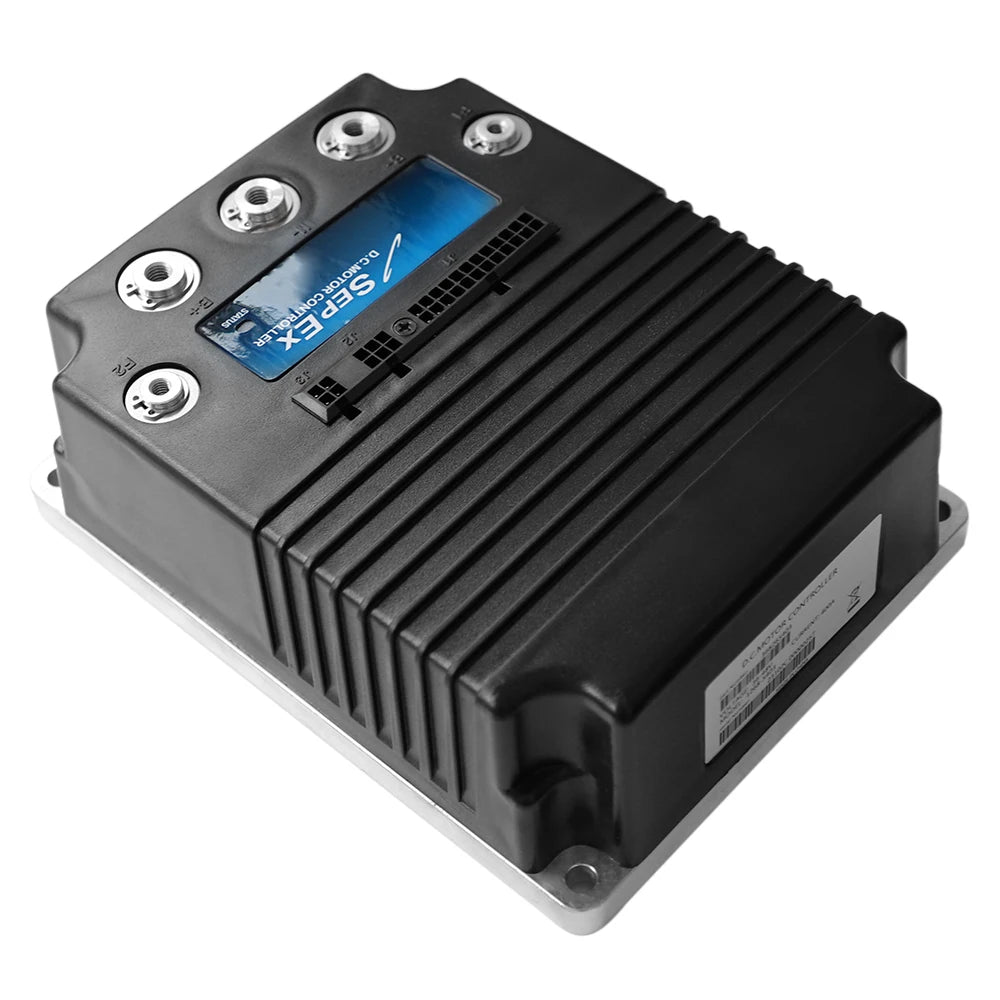

48V 400A 0-5KΩ DC Sepex Motor Controller for Curtis Ezgo Club Car Yamaha 1999-UP Golf Cart Electric Vehicle 1268-5403
48V 400A 0-5KΩ DC Sepex Motor Controller for Curtis Ezgo Club Car Yamaha 1999-UP Golf Cart Electric Vehicle 1268-5403
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ECAS
Color: Black
Compatible Equipment: Golf Cart
Compatible Make: ZONE, STAR
Compatible Model: ZONE, Classic, Sirius, Capella, Sirius Lifted, Capella Lifted
Compatible Year: 2024, 2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000
Controller Type: DC Motor Controller
Country/Region of Manufacture: China
Current: 400A
High-concerned chemical: None
Item Height: 13.00cm
Item Length: 33.00cm
Item Weight: 4.03kg
Item Width: 23.00cm
Model: 1268-5403
Origin: Mainland China
Placement on Vehicle: Connected to Motor
Special Features: Motor Control
Throttle Type: 0-5KΩ
Voltage: 48V
Warranty: 2 Years
Part Number: 1268-5403 12685403
Application Models:
Compatible With Curtis 1268 DC SepEx Motor Controller EZ-GO Golf Carts Club Car
Specification：400A,48V,0-5KΩ
PWM operating frequency: 16 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage (minimum): 16.8 V
KSI input current (typical): 160 mA without programmer; 200 mA with programmer
Ambient operating temperature range: -40°C to 50°C
Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
Heatsink undertemperature cutback: 50% armature current at -25°C
CURTIS Model: 1268-5403
Norminal Battery Voltage (Volts): 48V (default setting) or 36V
Amature 2 minute current rating (amps): 400
Field 2 minute current rating (amps): 50
Logic enable and logic power input voltage (minimum):16.8 V
Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer
Logic input voltage: 20.0 V High; 7.5 V Low
Logic input current 10 mA
Throttle Type: various throttles can be used with the 1268 controller, including 5kΩ 3-wire potentiometers and 0–5V throttles.
