Youth Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation.

The main components of the main shaft box, intermediate block, connecting block, tailstock, large slider, small slider, hand wheel, support and so on are made of metal. The quality of the product is improved, more durable and more precise.

Parameter:

●Input voltage: AC100V~240V 50/60HZ

●Output voltage : DC12V 2A

●Motor rated power: 24W

● Motor speed: High speed motor 20000r/min ± 15%

● Low speed motor: 10000r/min ± 15%

● Spindle speed: high speed motor 3000r/min±15%

● Low speed motor: 1600r/min ± 15%

● Spindle jump: <0.1mm

● Large slider stroke: 45mm

●Small slider stroke: 35mm

●Center height: 25mm

●Center distance: 110mm

●Maximum processing diameter: 13mm positive claw, 45mm reverse claw

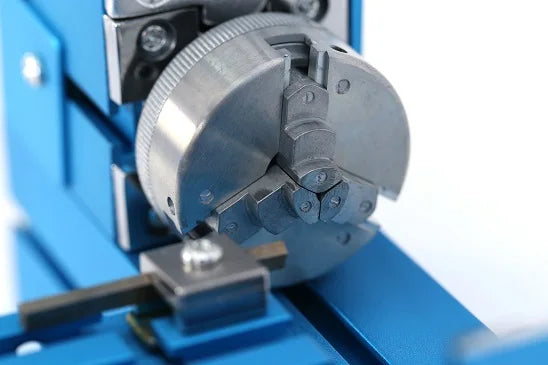

●Three-jaw chuck clamping diameter: 13mm claw, 45mm reverse claw

●Handle scale: 0.1mm/division

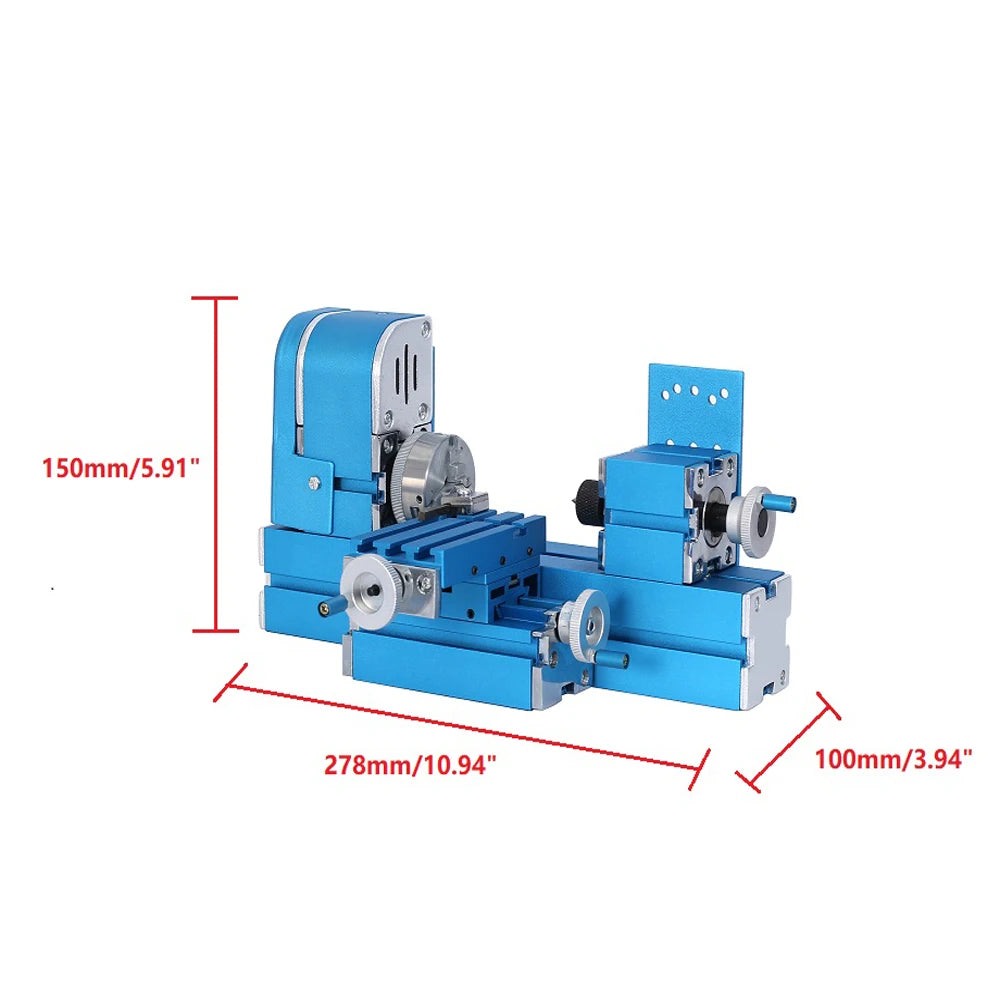

●Packing size: 230mm*200mm*315mm

●Weight: 2.2KG

●Connection method: M12 * 1 screw hole

●Minimum clamping size: 1.5mm * 1.5mm

●Maximum clamping size: 18mm * 18mm

●Processing ability: It can process soft metals such as copper and aluminum.

1x A set of lathe
