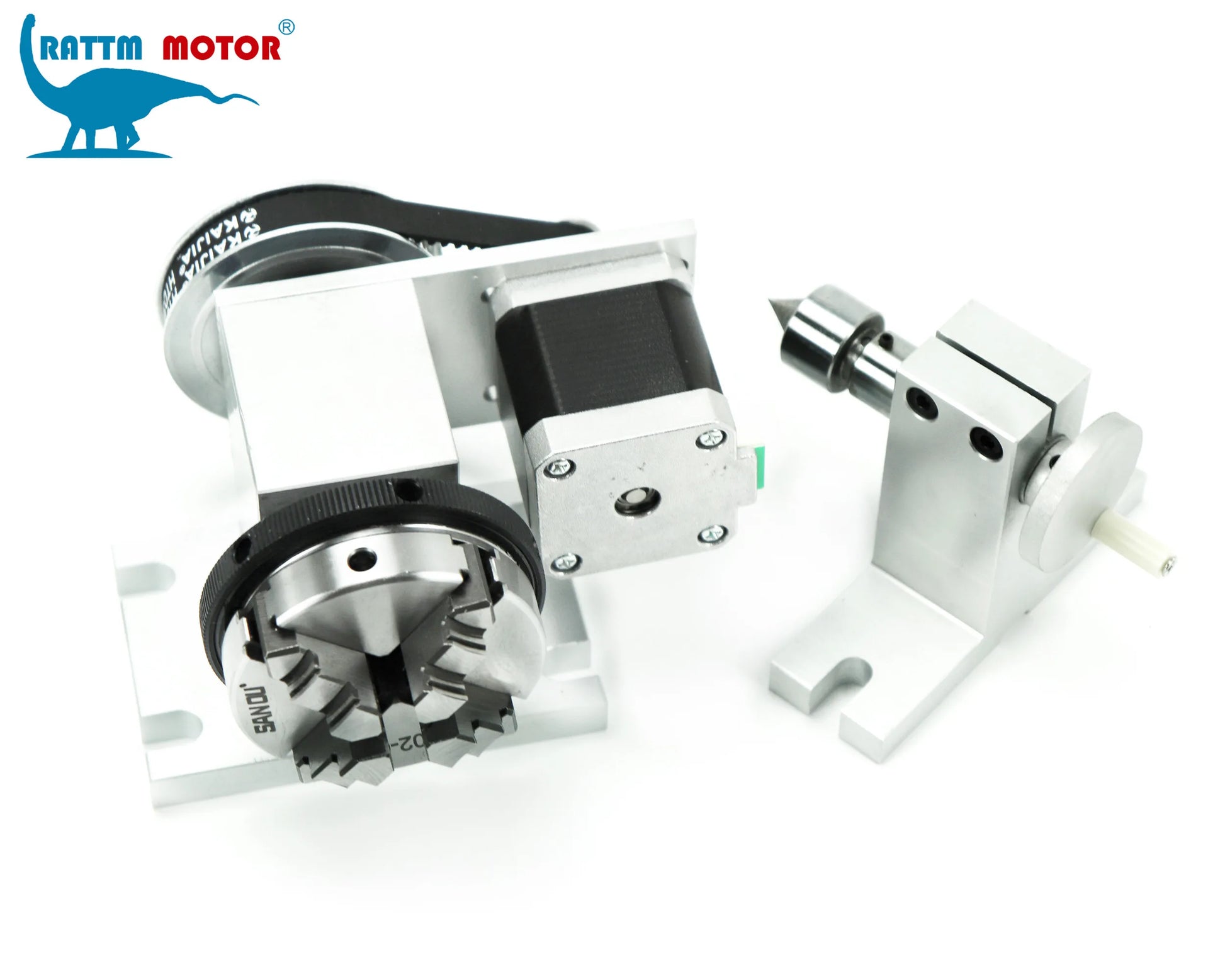

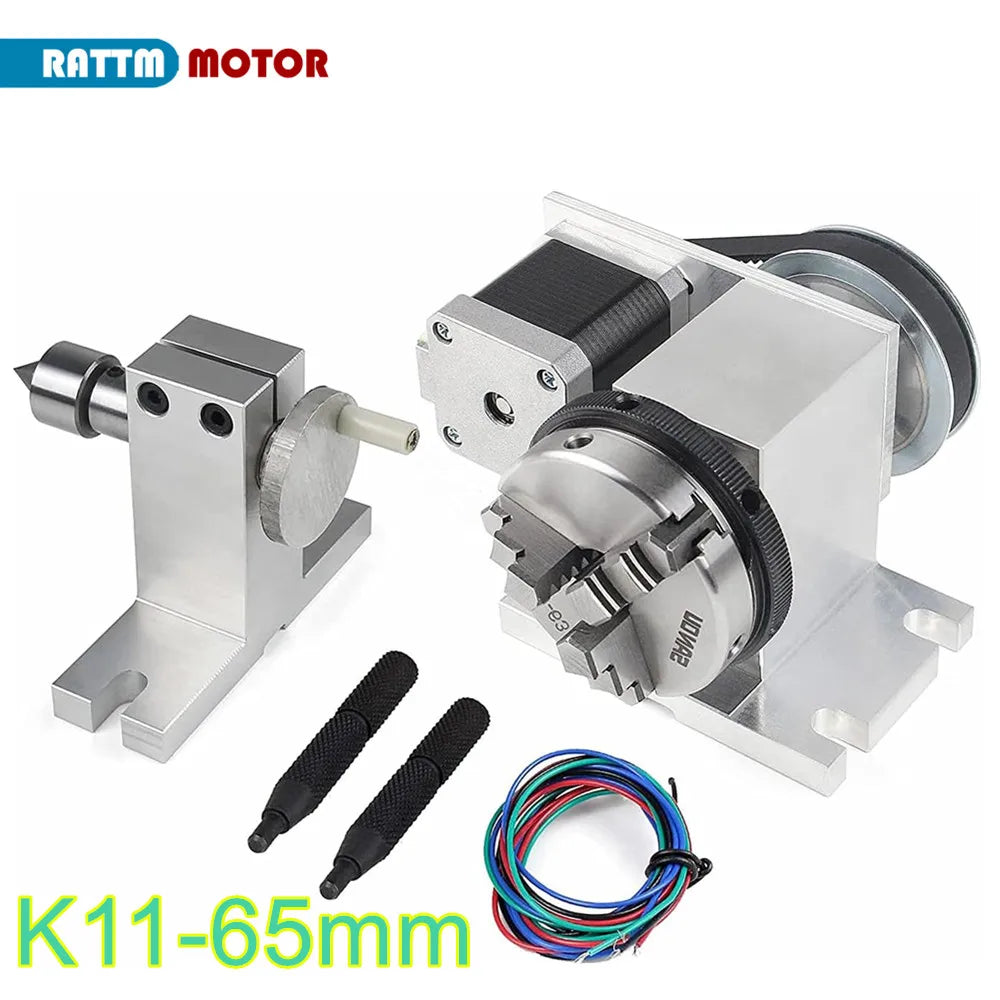

【EU US】CNC Lathe Kit Fourth 4th A Rotary axis K11-65mm / K12-65mm With 3 4 Jaws Chuck
【EU US】CNC Lathe Kit Fourth 4th A Rotary axis K11-65mm / K12-65mm With 3 4 Jaws Chuck
Couldn't load pickup availability
SPECIFICATIONS
Angle: 0.3deg / step
Brand Name: RATTMMOTOR
Center height: 44mm
Certification: CE
Chuck Type: K11/K12-65mm Chuck
Condition: New
High-concerned chemical: None
Model Number: K11-65mm(K01-63)
Number of Jaws: 3
Origin: Mainland China
Power: Manual
Power Source: Manual
Reducing ratio: 4:1 (belt deceleration mode)
Stepper motor: Nema17 2-phase 4 wire
Total height: 85mm
Package include:
1Set 4th axis K11-65mm or K12-65mm

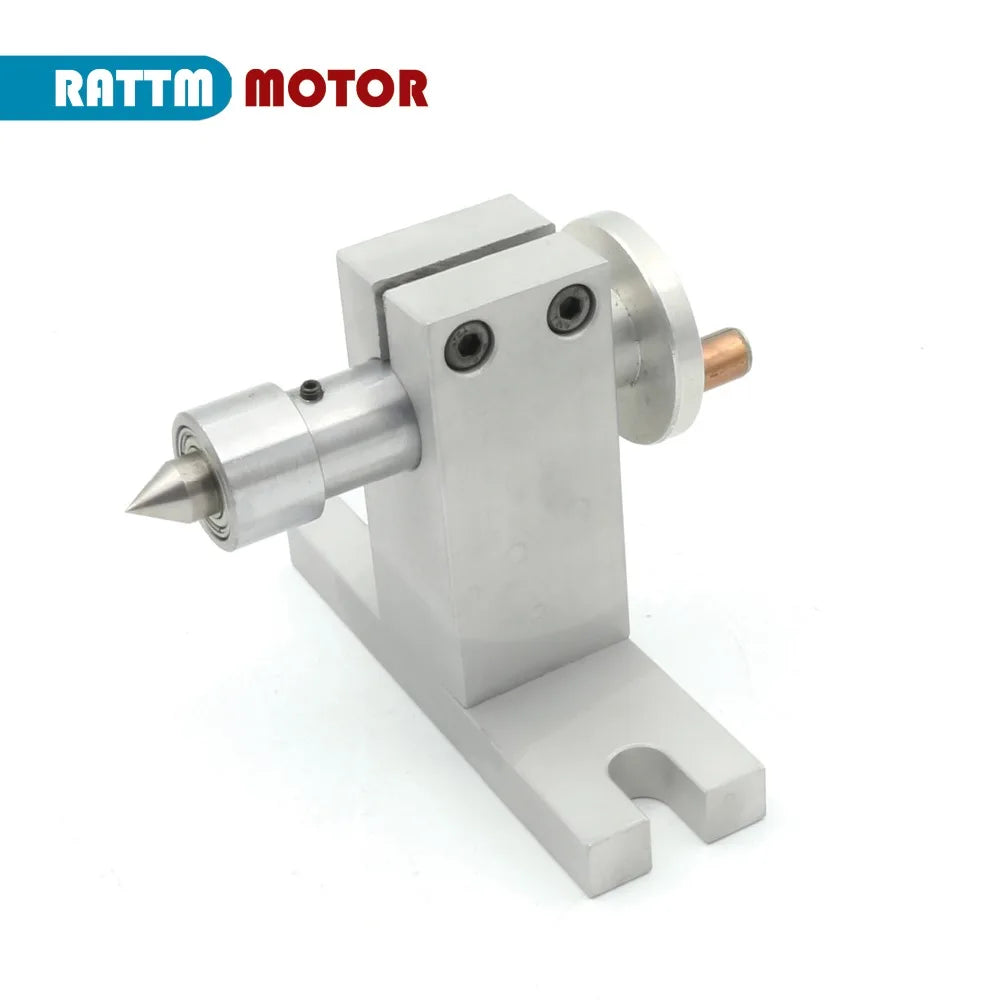

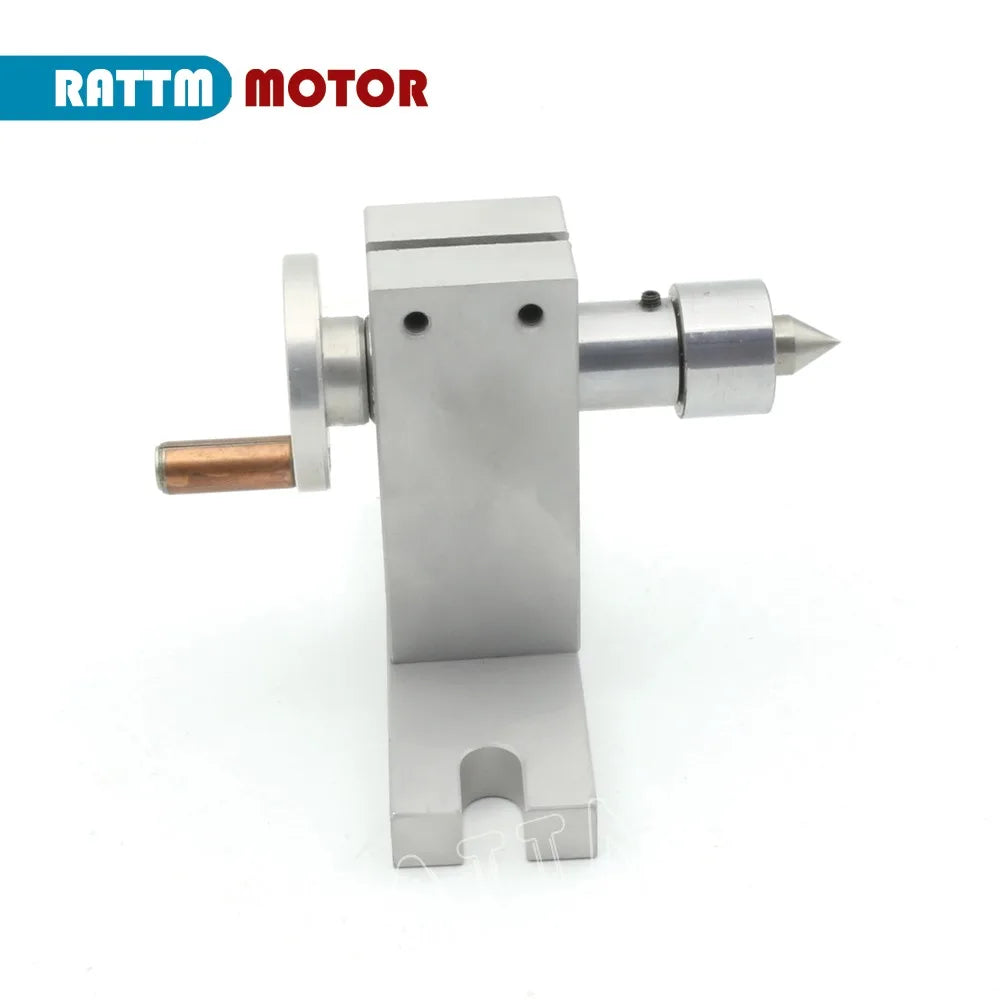

1 x Tailstock

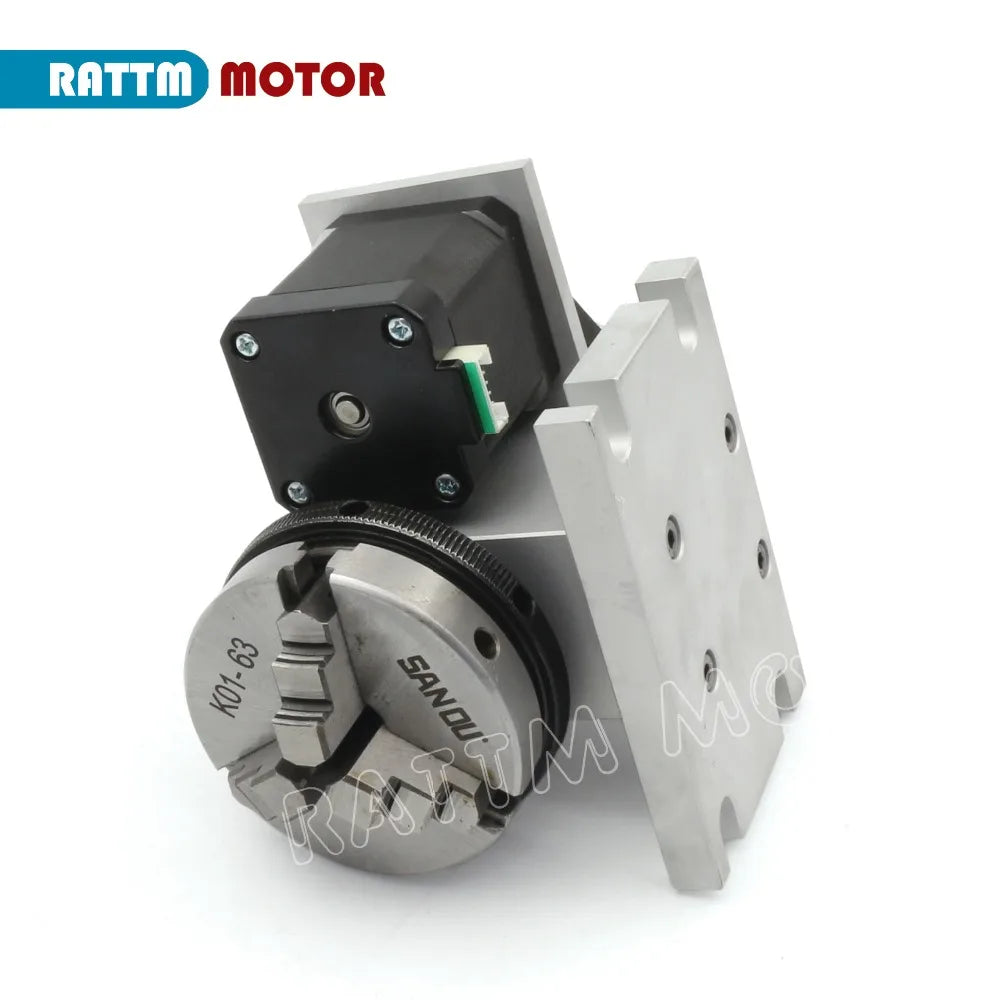

Engraving machine 4th axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox
Chuck type: K11-65mm or K12-65mm
Center height: 44mm
Total height: 85mm
Angle: 0.3°/ step

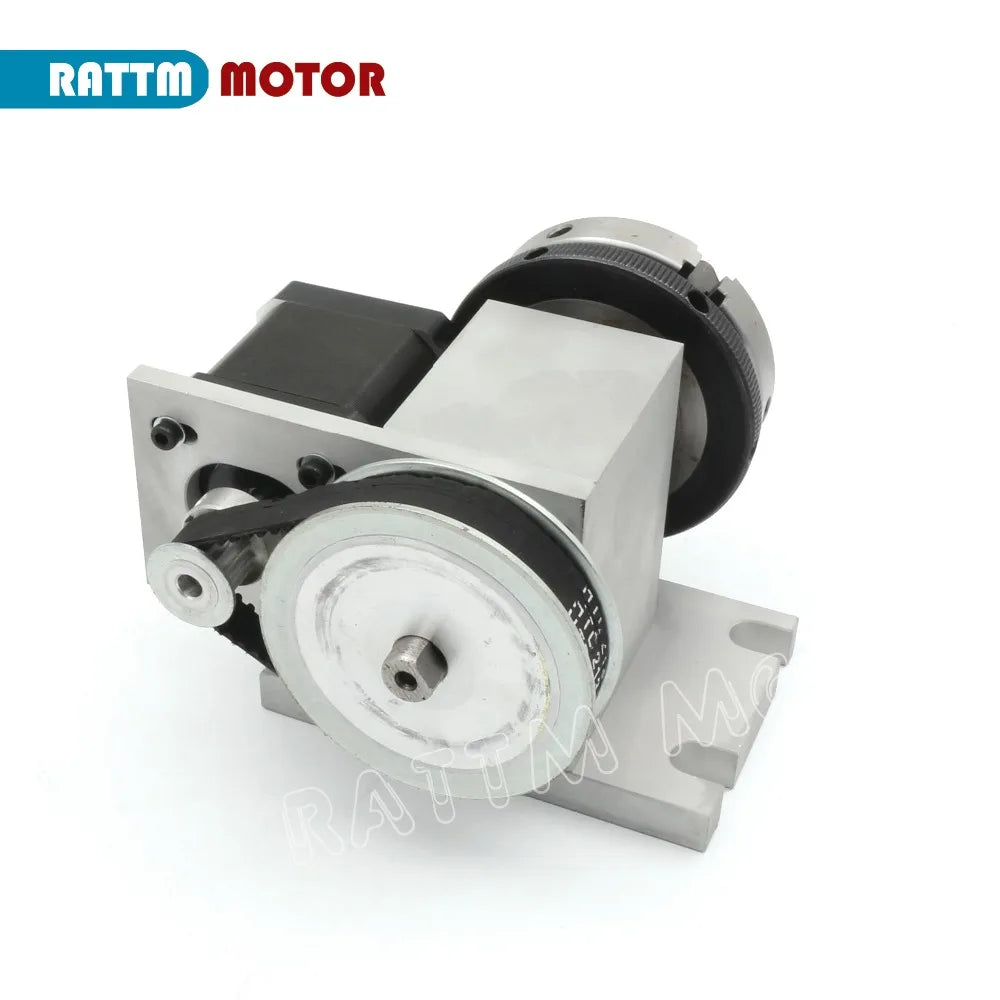

Reducing ratio:4:1(belt deceleration mode)
Stepper motor: Nema17 2-phase 4 wire
Accessories: Set of Anti-claw and wrenches
The fourth axis parameter settings:
Mach3 system settings: the pulses required for 1°
(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°
For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 6:1
(200 x 16 x 6) / 360=53.3333)
Weihong system settings: 1 pulse along the angle
360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)
For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 6:1
360 / (200 x 16 x 6) =0.01875
