4K Ultra HD Surveillance Camera – Professional Security Solution

Key Features:

• DS-2CD2487G3-LI2UY

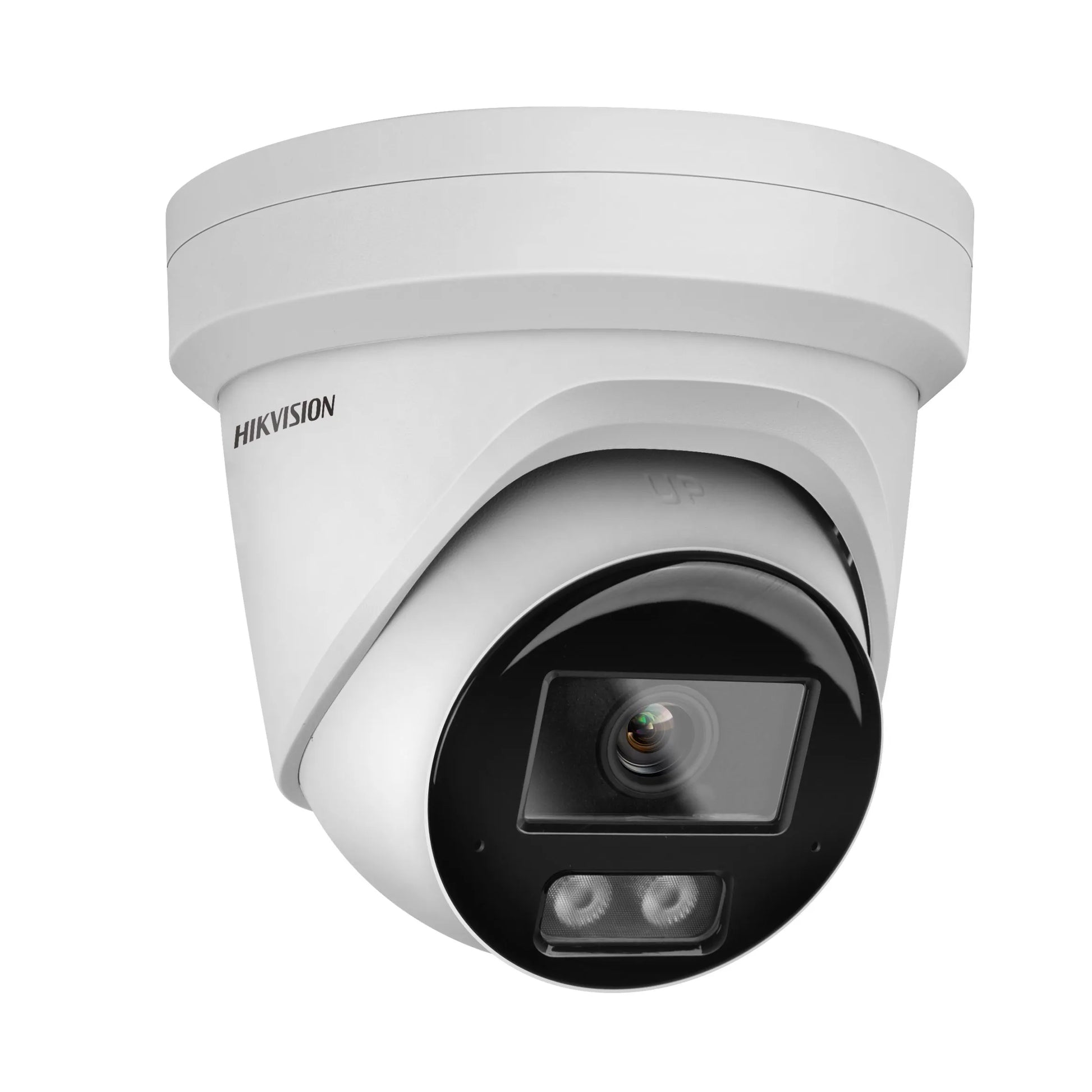

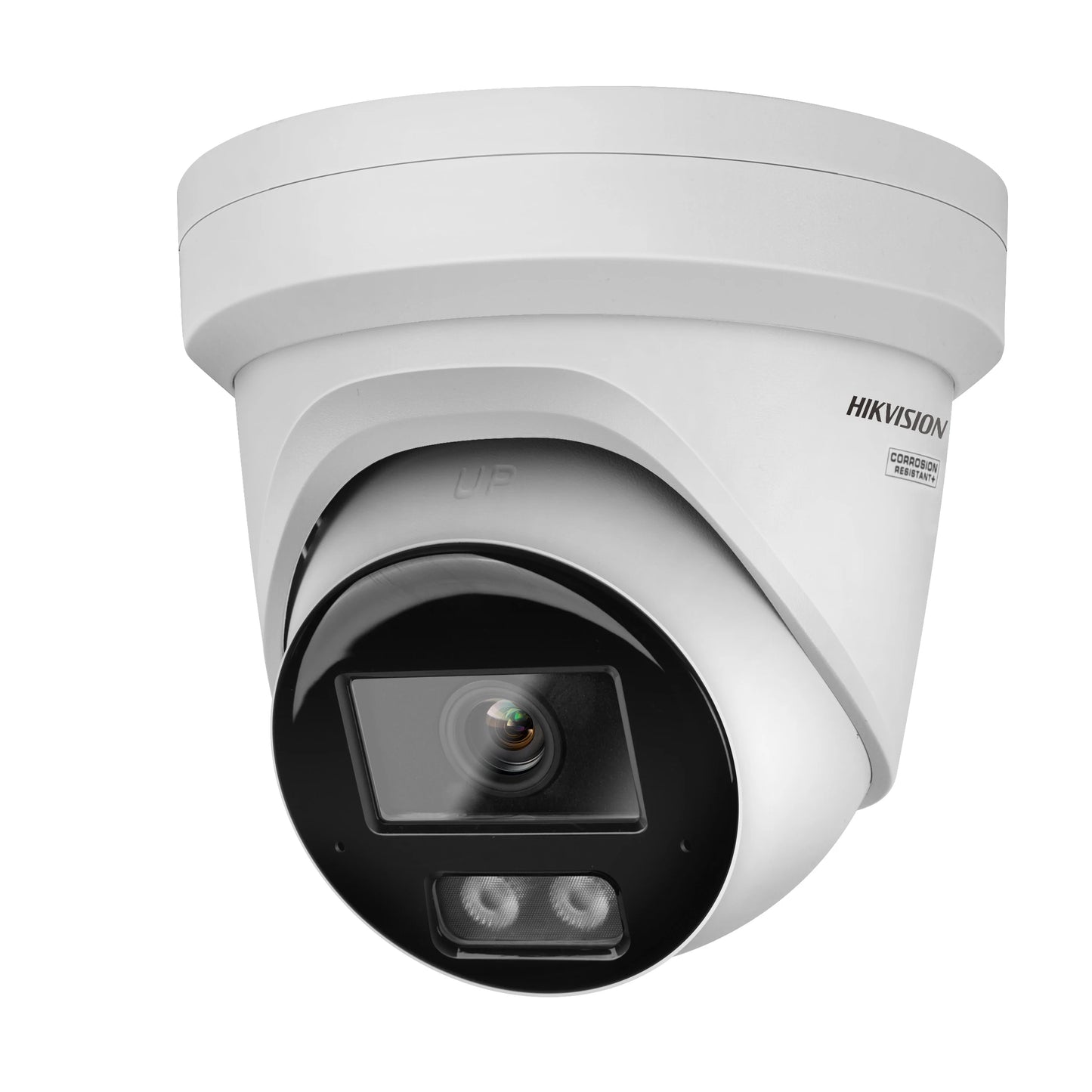

  4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera

  • HikAI-ISP for excellent noise reduction effect

  • 24/7 colorful imaging via ColorVu technology

  • Scene-adaptive WDR

  • Focus on Person and Vehicle classification based on deep learning

  • Built-in arrayed dual-microphone for real-time high quality audio security

  • Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)

  • Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes

  • Water and dust resistant (IP67)

• Camera

• Image Sensor1/1.8" Progressive Scan CMOS

• Max. Resolution2688 × 1520

• Min. IlluminationColor: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light

• Shutter Time1 s to 1/100,000 s

• Day & NightIR cut filter

• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional

• Focal Length & FOV

  2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°

  4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°

• Lens MountM16

• Iris TypeFixed

• ApertureF1.0

• Depth Of Field

  2.8 mm: 2.5 m to ∞

  4 mm: 3.1 m to ∞

• DORI

• DORI

  2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m

  4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

• Illuminator

• Supplement Light TypeWhite Light,IR

• Supplement Light RangeUp to 30 m

• Smart Supplement LightYes

• IR Wavelength850 nm

• Video

• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *The third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps

• H.264 TypeBaseline Profile,Main Profile,High Profile

• H.265 TypeMain Profile

• Bit Rate ControlCBR,VBR

• Scalable Video Coding (SVC)H.264 and H.265 encoding

• Region Of Interest (ROI)1 fixed region for main stream

• Audio

• Audio Type-2U: Mono sound

• Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

• Audio Compression-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz

• Environment Noise Filtering-2U: Yes

• Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Simultaneous Live ViewUp to 6 channels

• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

• ClientiVMS-4200,Hik-Connect,Hik-Central

• Web Browser

  Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,

  Local service: Chrome 80+, Firefox 80+, Edge 89+

• Image

• Image Parameters SwitchYes

• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

• Day/Night SwitchDay,Night,Auto,Schedule

• Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog

• SNR≥ 52 dB

• Wide Dynamic Range (WDR)130 dB

• Image StabilizationEIS

• Privacy Mask4 programmable polygon privacy masks

• Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Audio

  Built-in Microphone:

  -2U: Arrayed dual-microphone

• Reset KeyYes

• Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

• Smart EventScene change detection

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email

• Deep Learning Function

• Face CaptureYes

• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• General

• Power

  12 VDC ± 25%, 0.7 A, max. 8.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 11 W

• MaterialCover: Metal, main body: Metal

• DimensionØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Package Dimension170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")

• WeightApprox. 750 g (1.7 lb.)

• With Package WeightApprox. 1140 g (2.5 lb.)

• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Approval

• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• EnvironmentCE-RoHS: 2011/65/EU

• ProtectionIP67: IEC 60529-2013

• Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)

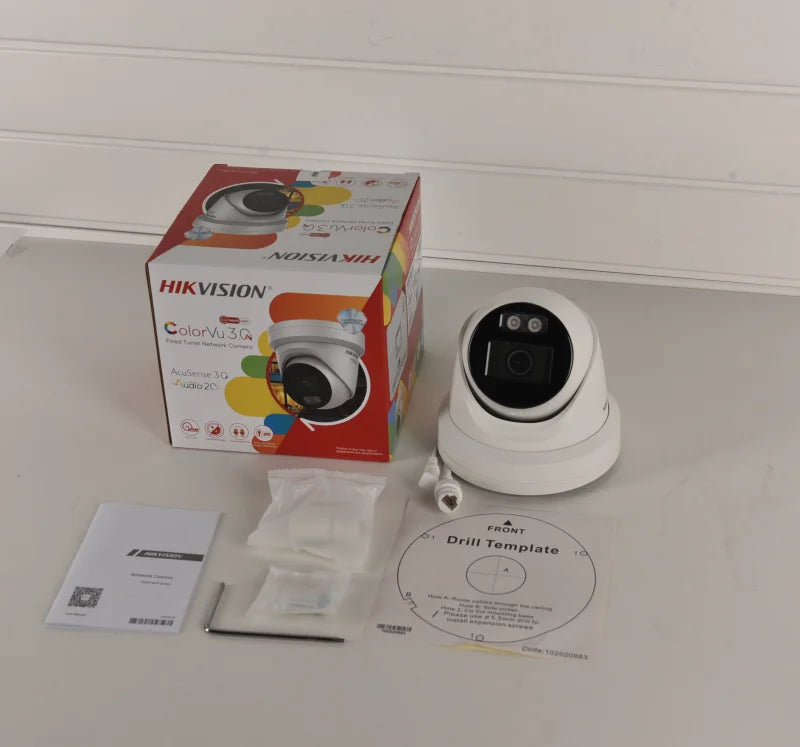

1.DS-2CD2347G3-LI2UY 4 MP

2.Wiring cap*1

3.Screw driver*1

4.Screw* 1 lot
5.Location hole paper*1
