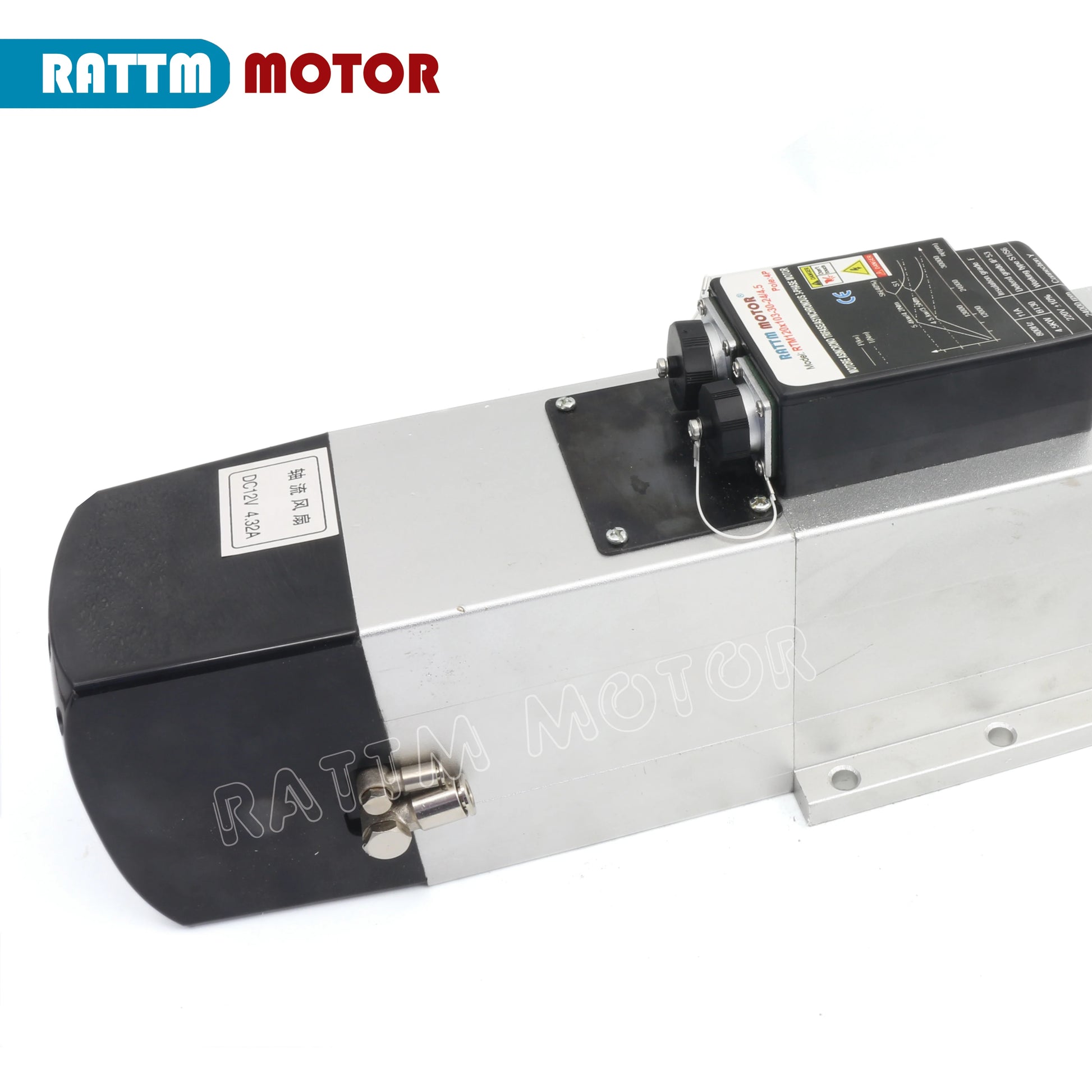

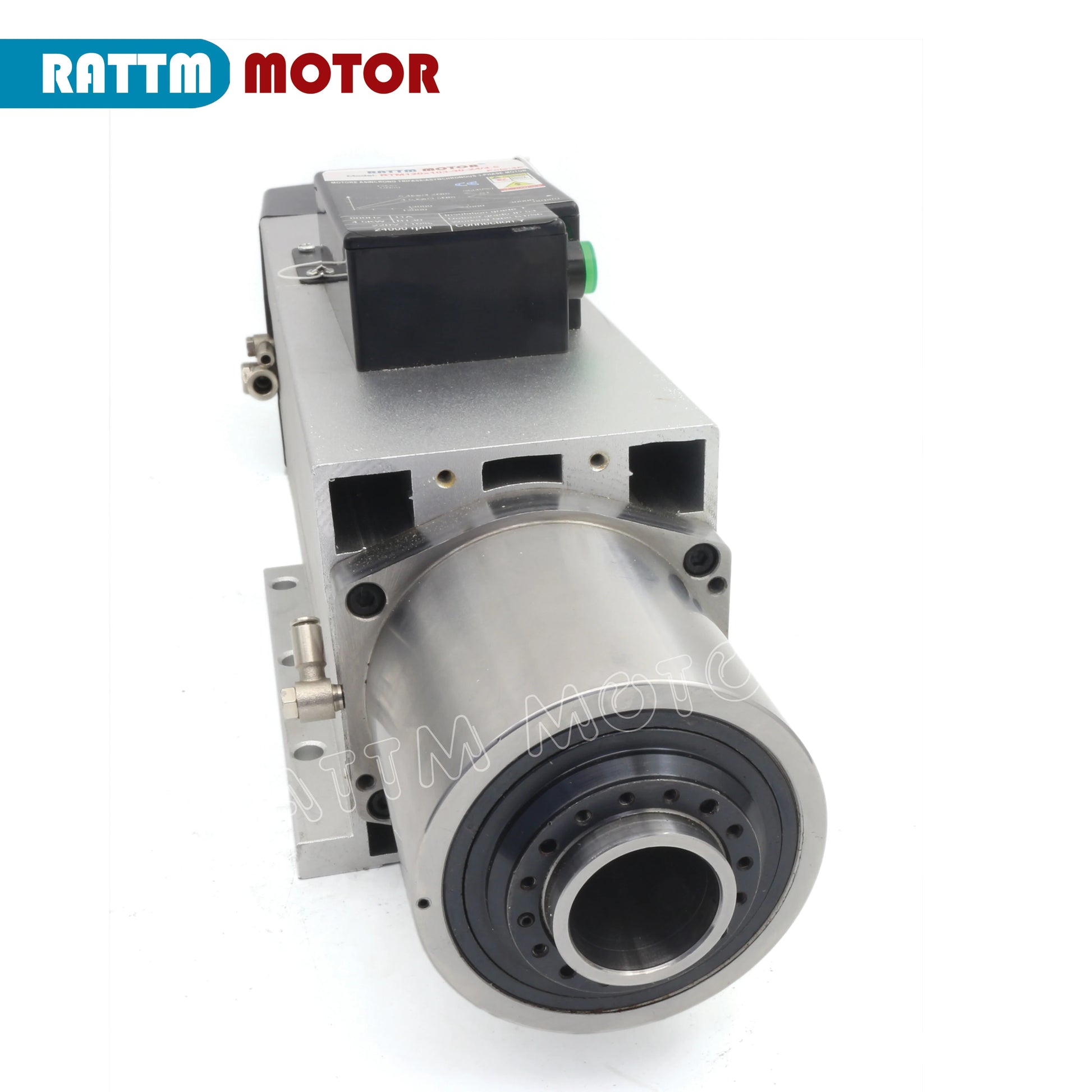

1 x 4.5KW BT30 ATC Air Cooled Spindle Motor 220V or 380V ( 24000rpm, 15A,3-phase,800Hz, 4pcs bearing )

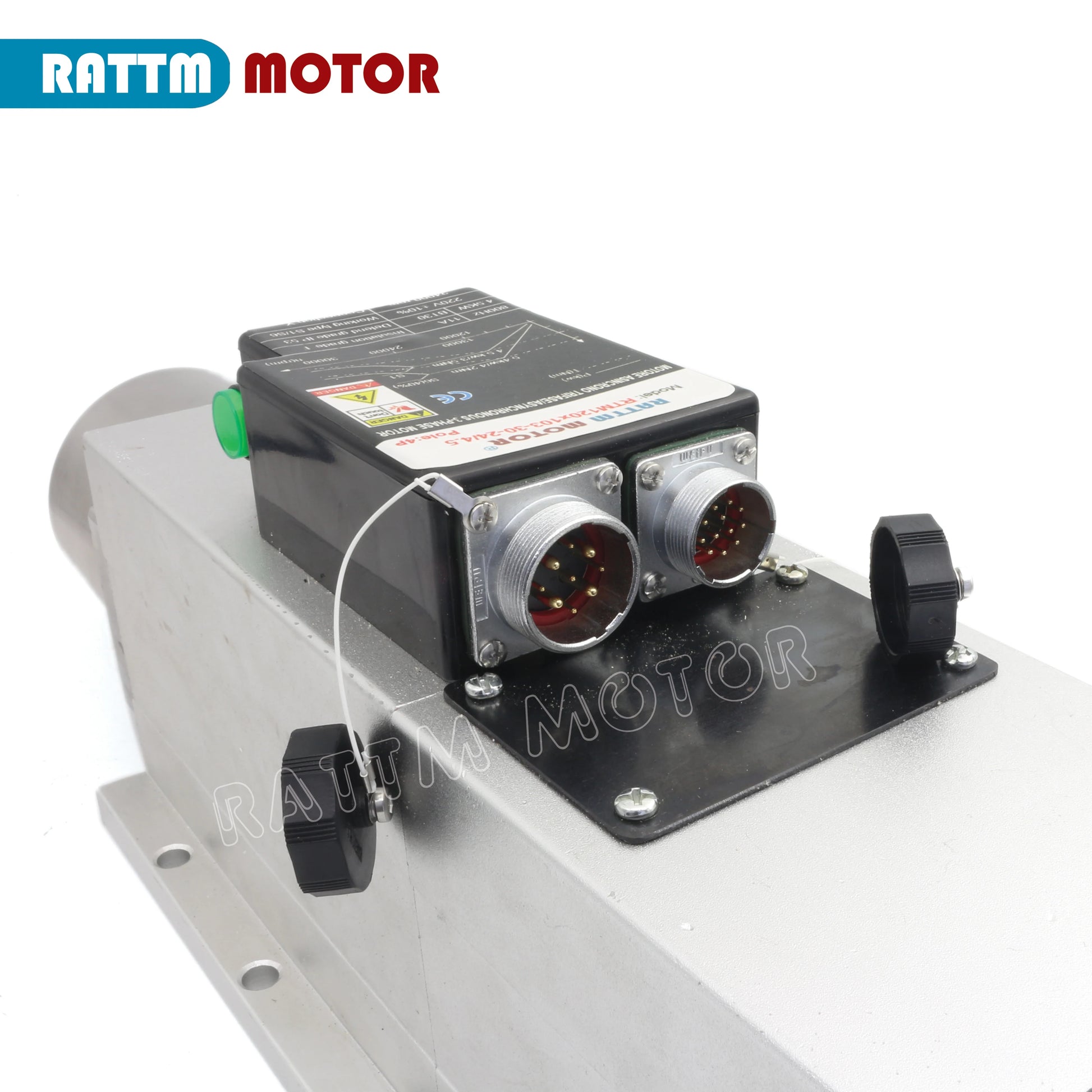

2 x Aviation plug

1 x BT30-ER25 Tool Holder with pull stud

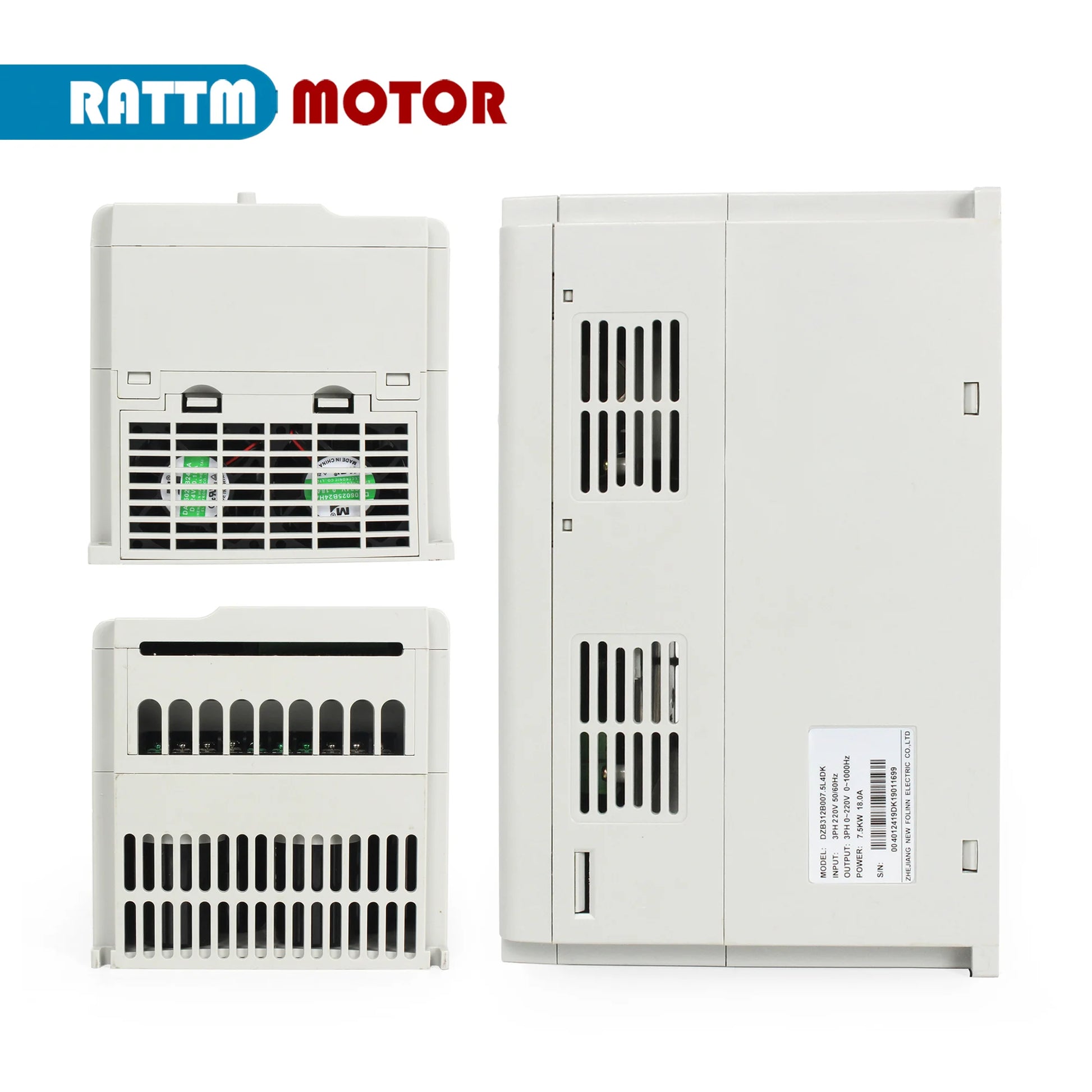

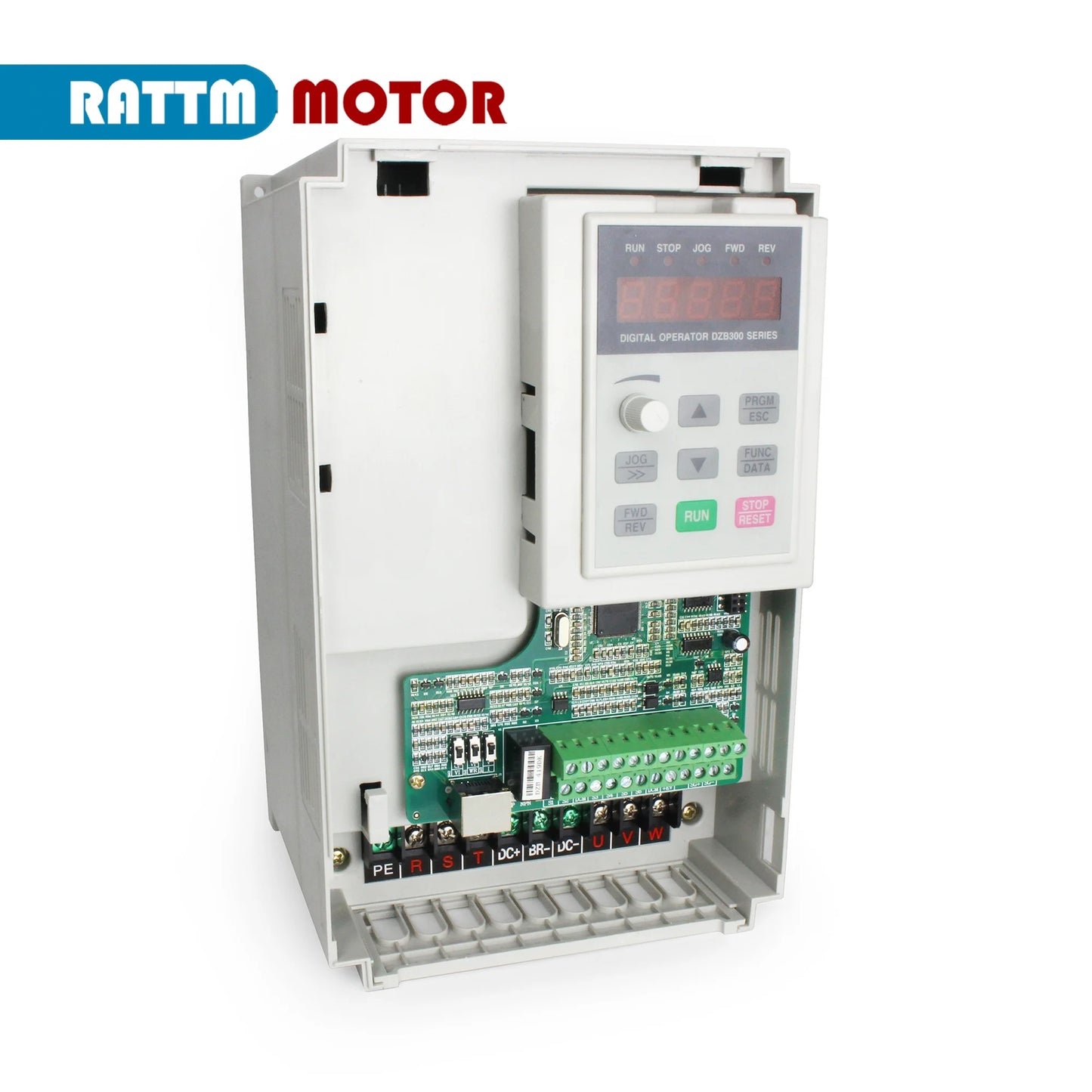

1 x 5.5KW Fuling Brand Inverter VFD 220V or 380V (VFD is optional)

English user manual will send by email

product overview

DZB312
series special inverter for carving machine is designed for carving
machining industry, it adopts  sine wave pulse width vector control
technology with specialized macro code function built-in, it's easy for
installation and debugging,  reasonable wiring technology makes it
stable and reliable.

Product features

◆ It can realize 8 segment speed running for convenient macro card control

◆ Adopt 32-bit microprocessor and sine PWM control

◆ Unique core algorithm and low interference

◆ Adopt independent air duct for many dust occasions

◆ Automatic torque promotion and automatic slip compensation function

◆ Output frequency range 0~600.0Hz，customized up to 2000Hz

◆ Built-in standard 485 communication function

◆ Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging

Applications

◆ various engraving machine, high speed motorized spindle

Technical parameters

◆ input voltage：1AC220V±15%  3AC220V±15%  3AC380V±15%

◆ Output power range：220V：0.75kW~15kW，380V：1.5kW~15kW

◆ output frequency：0~600Hz，custom-made above 600Hz

◆ Input frequency 47~63Hz，power factor≥95%

◆ control mode：Non-PG vector control, V/F control

◆ Source of operation instruction：given by panel, terminal and   RS485 communication

◆
Source of given frequency：given by panel figure, analog quantity, RS485
serial communications, multi-speed simple PLC and PID etc.

◆ Overload capacity：130% rated current 60s、150% rated current 3s

◆ Carrier frequency：1.0kHz~15.0kHz，and can be automatically adjusted according to temperature and load characteristic.

◆ Frequency resolution：the given digital value is 0.01Hz，and the analog quantity is given as the highest frequency plus 0.1%

◆ Torque elevation：Manual torque can elevate 0~30%

◆ Inching operation：frequency range：0.0Hz~ Maximum output frequency Inching acceleration and deceleration time：0～3600.0s

◆ Simple PLC and multistage speed operation：it can realize up to 8 segments running

◆ Automatic voltage regulation： When grid voltage fluctuation occurred, it can automatically maintain constant output voltage
